2024 SUPER LATE MODELS RULES

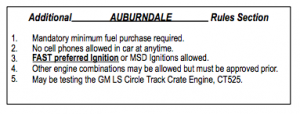

IMPORTANT: Competitors MUST READ the “Additional Series/Track Rules” Section at the end for additional rules specific to a Track or Series.

Eligible Cars and Bodies Guidelines

1.Please read the minimum chassis eligibility and requirements

2. All competing cars must utilize bodies listed below. 2018 A-B-C Body Rules apply unless otherwise specified herein. Refer to A-B-C Rulebook and guidelines for details. No interior panels allowed extending the top edge of doors. Any holes in the body not being used must be covered and remain so during the race. The Five Star Next Gen body has been approved for competition with the 64.5-inch spoiler. The AR Revolution body is not permitted currently.
3. 12-inch A-pillar vent windows are mandatory with a maximum of 1-inch of straight-line deflection and must be smooth, no bead rolls or breaks. Front nose valance must be a single layer and may only be a maximum 3/16” thick and may be only a maximum of 3” tall and may not cover any of the grill screen. Valance must be tight and notmove.
4. Rub rails are discouraged and may only be used if they are polycarbonate.
5. If exhaust exits through the door, installation must include an exhaust flange that is mounted flush to the door and cannot go past door seam. Maximum ½” gap around the exhaust pipe. Pipe must not protrude through the door.
6. At all times, for original ABC bodies, the ABC “A” measurement must maintain a minimum length of 11.5 inches on the sides and 20 inches is the minimum length allowed for the nose, measured from the bottom, leading edge at center, up to the hood seam. Measurements strictly enforced!
7. Minimum/ Maximum Nose Height will be: Minimum nose, body and frame height is 4” and Maximum of 8”. (While in tech for the purposes of tech inspection)
8. The duct work between the nose and the radiator may be no wider than 29” and may not be carbon fiber. The standard opening for the grill screen area, as approved for manufacturers’ production, must always be maintained. Only ABC manufacturers standard mesh screen may be used for the radiator opening in the nose. No cool down units, pumps, exotic fans allowed.
9. No types of underbody air deflectors are allowed. All air for blowers or coolers in the engine compartment must be pulled from the nose or the radiator air box. Only one nacaduct in the left or right quarter window for helmet bloweronly.
10. No air obstruction/deflection devices in grill area, duct work, through radiator or tape of any kind will be allowed anywhere on the outside of the car. The only tape exception will be the upper half (3”) of the factory body manufacturer grill screen and brake ducts, or with official approval after on-track damage that results in the need for tape.
11. Window tint of any kind will not be allowed on windows or spoilers.
12. Titanium, Inconel, or exotic metal are not allowed for use in any way on the race car unless specified otherwise. No Carbon Fiber: radiator ductwork, rotors, drivelines, driveshafts, chassis supports or clutches.
13. Interiors must be steel or aluminum only.
14. No Data Acquisition equipment/wiring is allowed in the car on officially recognized race or practice days. No digital dashes allowed. Cellphones, smart watches, or Bluetooth devices will not be allowed in racecar at any time during tech, practice, qualifying or race, the driver will receive a $1000.00 fine on 1st offense and will be an automatic disqualification on the 2nd offense.
15. Scoring transponders must be placed 160” from the nose on the right rear frame rail.
16. All cars must go through technical inspection by assigned appointments. Cars will be weighed with the driver and may be done prior to or after qualifying and prior to or after the feature. Reading of designated scales will be official. Issues discovered in pre-tech that are not fixed to satisfaction by pre-qualifying tech will result in the slowest of the two qualifying laps will be used for qualifying time. Must run both laps.
17. Minimum Base Weight: 2800 lbs. and 58.0% maximum left side weight at all times (without refueling). (see “Series/Track Additional Rules” section for additional weight breaks or penalties). For post-race total weight rules, if requested by officials, teams may be required to refuel, or officials may utilize “1 lb. per lap” burn-off.

Basic Engine Guidelines

1. The exhaust system may only be made of mild steel, 304 or 321 stainless steel. A muffler must be used and installed in a configuration that will suppress exhaust noise to a maximum of 99db’s at 100 feet.
2. Engines with rear mounted distributors will be located so the forward most spark plug is no more than two inches (2”) from the center line of the upper ball joints. Engines with front mounted distributors: up to four inches (4”) setback from centerline of upper ball joints. Crate Engines may use four-inch (4”) setback.
3. Engines may not be offset more than one inch (1”) from centerline of car.
4. The front center of crankshaft must have at least ten inches (10”) of groundclearance.
5. Standard steel blocks only. Externally or internally lightened blocks will receive a 25- 50 lb. total weight penalty at minimum. No Carbon Compacted blocks of any type.

6.A maximum 16-inch (O.D.) air element and housing must be used.
7. Carburetor restriction must be done with a solid plate or cone type system only and may not be externally adjustable in any way. No adjustments may be made to the carb/restrictor package following qualifying.
8. Any competitor that finishes in the top 5 may be required, at their expense, to remove the intake, heads, and/or oil pan for inspection purposes.
9. All oil pumps must be mounted to the front of the engine. All stages must be straight tooth or straight rotor with a maximum rotor of three lobes. No high helix pumps permitted.
10. No engine parts may be coated, painted, or modified from the original spec for that engine combination.

Sealed & Other Engines

1. Sealed approved McGunegill, Hamner, Ford Racing 374D and Progressive may be used. No new Ford 374D engines may be built. If necessary, series officials may add or subtract weight to ensure fair competition. Any tampering of seals or established construction of these engines is grounds for immediate disqualification. Additional tech rules will apply. The maximum RPM is the series mandated 7600 for these engines. Rev limiting device must always be operational with RPM Dials securely covered. All Sealed engines must use the gauge legal, 750 carb as described in the SSPE section. NO Internally lightened blocks.
2. The “ACE” Engine commonly used in the ARCA Midwest Tour may also be used with a 750 carb as described in SSPE engine section. Series officials may add or subtract weight to ensure fair competition. 7800 rpm max.
3. Crate engines may also be used, and Series officials may add or subtract weight to ensure fair competition, weights will be posted on entry forms. Cars utilizing crate engines must use the engine, carb, and ignition specifications from the Pro rules, unless otherwise specified.

Southern Super Parts Engine (SSPE)

Southern Super Parts Engine (May Be Claimed for $24,000)

1.Maximum Engine displacement is 362 cubic inches.
2. The maximum compression ratio is 11.5:1 with +.5 tolerance.
3. Any flat top piston permitted with 927 wrist pin (no titanium) and 1mm x 1mm x 2mm ring package only. Pistons must not extend out of the top of engine block. Maximum cost to the Racer of $1500.00 per set.
4. Cast Iron engine blocks only. No lightened blocks.
5. Intake must remain stock. Absolutely no match porting or blasting of any kind permitted. Slotting of bolt holes, water lines and matching of sides allowed. Ford part #: Edelbrock 2928, 2929, or 2934 only. Chevy part#: Edelbrock 2814 or 2892 only.
6. Crankshaft must have a minimum weight of 40 pounds (with front timing pulley or sprocket). Minimum main size Chevy 2.300/Ford 2.250. The maximum cost to the Racer of $2400.00.
7. Connecting rods: Minimum rod journal size 1.850.” Absolutely no piston-guided rods permitted. Maximum cost to the Racer of $1800.00 per set. No titanium rods permitted. Minimum rod weight 540 grams.
8. Listed Brodix Cylinder Heads only. Heads may be surfaced to achieve proper compression ratio. Absolutely no other work of any kind will be permitted to the intake ports, exhaust ports, or combustion chambers. Ford part #: SP STS T-1 F Std 225- SSPE. Must retain minimum valve angle of 20°. Chevy Part #: SP STS T-1 Std 227- SSPE. Must retain minimum valve angle of 21°. Multi-angle valve job permitted. Absolutely no blending of valve job below valve seat permitted. The chamber must retain shape 3/8” above valve seat. Minimal blending due to multi-valve jobs permitted.
9. Maximum valve size: Intake 2.08,” Exhaust 1.60”, Stem size 11/32”. The intake valve may be titanium or stainless steel. The exhaust must be stainless steel.
10. No titanium valve springs permitted. Maximum cost to the Racer of $650.00 per set. Titanium retainers permitted. Lock angles not specified. No valve springs less than a minimum O.D. of 1.500.
11. SSPE spec Camshaft must be Competition Cam Part #: 21151712. Camshaft must be installed on 104° intake centerline +/- 1°. Roller lifters, Maximum cost to the Racer of $1,000.00 per set. Maximum lift of .715” while using 1.6 rockers checked at valve with zero lash. Maximum 1.6 rocker arm cost to the Racer of $1,650.00 per set. Magnetictype push rods only. No keyway guided lifters permitted.
12. Maximum 5 stage dry sump oil pump permitted. No high helix pumps permitted. The maximum cost to the Racer of $1,700.00.
13. Oil pan must have 1” inspection hole. Absolutely no sectional pans permitted. Open box pans only (NO windage tray / scrapers etc.). Maximum cost to the Racer of $850.00.
14. Mandatory 7800 RPM Rev Limiter must be installed and fully functional, per these rules. Absolutely no crank trigger pickups permitted.
15. The carburetor must be an unaltered 750 CFM 4779, 80528 Holley permitted. Carburetors must pass inspection at any time regardless of temperature. Maximum 1/2” carburetor spacer permitted on Chevrolet and Ford.

Fuel System

1.Sunoco Standard 110 is the Spec fuel, unless noted on entry form. Fuel samples may be taken at any time and tested for dielectric constant, specific gravity, and color. Alcohol, nitromethane, nitrous oxide, other oxygenating agents, other additives and/or fuels that contain masking agents or oxygen are not permitted. Use of such substances or additives will result in immediate disqualification. A variation of more than +/-0.3 in the Dielectric Constant (DC) reading from Sunoco 110 will be Illegal. No icing or cooling of fuel system.
2. No electric fuel pumps or forced induction of any kind are permitted.
3. A fuel cell will be mandatory with a 22-gallon (U.S.) maximum. Fuel cell must have a minimum of eight inches (8”) ground clearance. Fuel cells must be mounted securely behind the rear axle of the car. The front side of cell is to be no closer than 10” to the back of the rear end tube. All cars must have a safety bar at the rear of the fuel cell. At a minimum, all fuel cell configurations must include a rubber type cell in a steel container. No “U” Shaped Fuel Cells or non-standard-shaped fuel cells.

Ignition
1. Battery powered ignition. Vehicles must start under their own power. Maximum 16-volt battery. Car must be able to start with a 12-volt battery. No Mags. Batteries must be securely mounted outside of the driver’s compartment.
2. The Nelson Specialties/ SRL harness or Quick Car part number #50-2053 spec wiring harness is mandatory. All wiring must be sealed. No unplugged wiring. All wires to the distributor must be run separately and not part of a bigger loom orwiring harness.
3. One Crane/Fast Ignition part # 6000-6701 or JMS – Daytona Sensors’ part # 6000- 6701K only as produced and mounted on right side of car dials pointed out the passenger side on original plate. The mag positive & negative shall be a maximum length of 62 inches. This set up may be swapped out by officials at anytime.
4. No Traction Control Devices of any kind – If any ‘traction control’ device is found, the driver and owner will be disqualified from the event, the car will be confiscated until a $15,000 fine is paid. Additionally, the driver and owner will receive a lifetime ban from all events.

Suspension
1. No fifth (5th) coil or lift bar suspensions will be permitted. No birdcage set-ups of any kind (3 or 4 links). Trailing arms must mount to rear end in a solid fashion (heim allowed) and no part of the trailing arm mounting may freely rotate around the rear end. All parts of rear suspension must be solid, one-piece construction with no moving parts, with one heim at each end. All mounts for trailing arms, third links and track bars must also be solid and may not have the ability to move.
2. The wheelbase difference from left to right may not exceed ½inch.
3. No driver adjustments other than ONE adjuster for brakes.
4. Coil Springs and Spindles must be Steel. (Exception: approved ColemanSpindle)
5. One shock per wheel. Shocks must be only mechanical in nature and no part of suspension or shocks may utilize electricity. No Inerter-style dampners, a.k.a. “J dampners,” shocks allowed.
6. Maximum of one coil spring and one bump spring associated with eachwheel.
7. No hollowed-out bolts of any kind on suspension components.

Wheels and Tires
1. Steel only 10” wheels, lug nuts and studs. 66-inch maximum tread width for allcars.
2. Bleeders are not allowed. Wheels will be inspected for Hidden bleeders.
3. Cars must start the feature on the same tires on which they qualified. Cars running the last chance race may change tires prior to that race but must return to the qualifying tire for the feature. Cars that run the last chance race on qualifying tires will be allowed to change tires prior to the feature.
4. Use of tire softening or altering agents will not be permitted. Use of such substances will result in immediate disqualification, loss of points andmoney.

Transmission, Driveshaft, Rear End
1. Full standard type transmission only will be permitted. No quick-change transmissions will be permitted. Automatic transmissions will not be permitted. Any transmission that does not meet these guidelines may be assessed a minimum 25 lbs. penalty.
2. A minimum of one reverse and two forward gears will be required.
3. Crate engine teams may use their transmission rules with no weight penalty.
4. Multi-disc clutches will be permitted. No direct drives. Conventional clutch mounted to fly wheel only will be permitted. No “slipper” or “centrifugal” clutches allowed.
5. No carbon fiber or non-standard material clutches. The minimumclutch diameter is 5.5”.
6. The driveshaft must be equipped with a minimum of two (2) safety straps and must be painted white. Drive shafts must be made of Aluminum or Steel only, and use no other materials (i.e., carbon fiber, etc.).
7. Standard Winters or equal type/brand of quick-change rear end with spur gears outthe back cover only.
8. Cars must utilize a working locked rear end (i.e., a spool or similar). No part of the spool may move or twist. Minimum 8” ring gear.

Brakes
1. Vehicles must be equipped with four-wheel hydraulic brakes.
2. Only steel rotors are allowed (no titanium or carbon fiber).
3. Brake fluid circulators permitted. Liquid or gas cooling not permitted.
4. Front brake cooling will be allowed two fans/hoses per brake, with a maximum 3″ flexible hose to the brake or tire.
5. Rear brake cooling: One 3” fan with a screen will be allowed per side, attached directly to each axle tube and a 3” diameter hose, maximum of 12 inches long from the blower to the brakes or the tire. Nothing may be attached to the end of the hose, no naca duct, or any other attachments. Just the blower and the hose.

Safety
1. Radio communication to the drivers is mandatory, with a minimum of one (1) spotter for each team. Spotter must have a stand-alone radio or scanner to monitor race control.
2. Approved seat belts and double shoulder harness will be required, no older than five (5) years. A crotch strap will be required.
3. A capable form of head & neck restraint must be used. A strap-type neck restraint is mandatory (No Neck Collars). Drivers will not be allowed on the racetrack at any time without proper neck restraints in place.
4. Helmets must be 2015 Snell standard or better and have sticker visible for inspection. Full-face helmets required. Only Snell S.A. helmets will be allowed (No “M” rated helmets).
5. Professional manufactured aluminum racing seats with an SFI rating are highly recommended. The Kenny’s Components JL1 seats are approved if bolted in 6 locations with a minimum of 3/8 bolts, but any other carbon fiber seat must have prior approval and may be required to have a minimum SFI rating of 39.2.
6. Clean, full driving suit and approved gloves for fire protection aremandatory.
7. The driver’s window must be equipped with SFI safety net with quick release-latch no older than five (5) years. String window nets will not be permitted. The minimum net size must be 17” wide and 16” high. When latched, the window net must fit and pull tight.
8. Resilient padding designed for roll bar use must be installed on any roll cage member which can be reached by any extremity of the driver while driver is normally seated with restraints fastened. The steering wheel must be padded.
9. All competing teams must possess a minimum of 10 lb. Aluminum working fire extinguisher while in attendance in pits, and this item must be presented at inspection. Car numbers must be painted on a fire extinguisher.
10. All lead weights must be painted white, with the car number painted on at least 4 sides. All weights must be securely fastened. No Tungsten or similar weight allowed!
11. Lead Inspection will be part of post-race tech moving forward. If a piece of lead is not properly painted white with car number in red or black marked on 4 sides the team will receive a $1500.00 fine on 1st offense with an automatic disqualification on the 2nd offense. Any lost weight will now result in a $25.00 per pound fine to the team.
12. Master ON-OFF switch is recommended to be in the center of the car, clearly marked and within easy access of driver as well as access from outside both window openings. At minimum, it must be clearly marked and easily accessible to safety crews.
13. Numbers must be a minimum of 21” in height, with the body of each character a minimum of 3” in width and must be professionally placed on each door. A number will be required on the roof, the roof number must be 36″ in height and three inches wide.
14. The driver’s last name is to be displayed on both sides along or just above the rocker panel below the car number in 4” readable letters.
15. A working Fire Suppression system or driver accessible fire extinguisher is required.
16. Mandatory all cars must have an Oberg, or SRI fuel shut off placed at the point the fuel exits the cell.
17. No part of the engine cooling system or fuel system may be in the driver’s compartment.

OFFICIAL DECISIONS
1. Any situation not specifically covered in these rules will be acted upon by the official or officials in charge at the time, whose decision will be final and binding.
2. Any disagreement over technical questions or operations will be resolved by series officials. When the decision is rendered, the decision is final and binding.
3. Continuous developments in racing may necessitate changes which cannot be anticipated at the time rules are formulated. If necessary, rules may be updated, changed, deleted, or added to at the discretion of the officials.
4. At certain events, to encourage participation of local competitors, the officials may alter the rules for those cars to try and create a level playing field for cars that might fall outside of the normal rules. Official’s decisions are

MINIMUM CHASSIS ELIGIBILITY AND REQUIREMENTS

A.Frame:
1. All chassis components must be made of magnetic steel and welded. The chassis must consist of a front and a rear sub-frame connected to the main frame on which the roll cage is welded and have a minimum overall height of 39”. Holes and/or other modifications that, in the judgment of the officials, were made with the intent of weight reduction will not be permitted.
2. Main Frame – The main frame must consist of two (2) side rails of magnetic steel box tubing minimum 2” x 3”, with a minimum wall thickness. of .083” (recommended .120”). All frame rails must be parallel. Straight Rail cars maximum drivers tub length is 52 ½” and the maximum width of frame is 53 ½”. No under car panning outside of frame rails and no further than drivers’ tub front or rear at the bottom of the frame. Perimeter cars can only have a total of 500 square inches.
3. Front sub-frame rails must be a minimum of 2” x 2” by .065” on the front clip from the front of the A-frame forward.
4. Rear sub-frame rails must be a minimum of 2” x 2” by .065” and must extend around the fuel cell.

B. Roll Bars:
1. At a minimum, all cars are required to have the basic and typical roll cage. Unless otherwise specified below, all roll bars listed must be made from round steel DOM tubing 1-3/4” by .090” (.000 tolerance) minimum wall thickness. Holes and/or other modifications that, in the judgment of the officials, were made with the intent of weight reduction will not be permitted.

C. Basic Roll Cage:
1. The main roll bar must be made from round steel DOM tubing 1-3/4″ by .090″ (.000 tolerance) minimum wall thickness and must be a continuous length of tubing with one end welded perpendicular to the top of the right frame rail and one end welded perpendicular to the top of the left frame rail.
2. The distance from the center of each of the front roll bar legs to the center of the main roll bar must not measure less than 40-1/2″. Each of the front roll bar legs must be made from round steel DOM tubing 1-3/4″ by .090″ (.000 tolerance) minimum wall thickness and must be constructed from a continuous length of tubing.
3. The halo must be made from round steel DOM tubing 1-3/4″ by .090″ (.000 tolerance) minimum wall thickness and must be a continuous length and remain parallel within 1-inch to the main frame rails with a minimum height of 38″. The outside-to-outside width of the halo must be a minimum of 28″ front to rear and a minimum of 25″ from side to side.
4. The main roll bar diagonal bar must be made from a minimum of roundsteel DOM tubing 1-1/2″ by .090″ (.000 tolerance) minimum wall thickness and must form a straight line, with no bends and must begin near the upper left and or right bend of the main roll bar and after intersecting the horizontal shoulder bar, should be supported from that point down to the main sub frame.
5. The dash panel bar must be made from round steel DOM tubing 1-3/4″ by .090″ (.000 tolerance) minimum wall thickness and must be a continuous bar, with no bends, welded beneath the dash panel between the two (2) front roll bar legs at a minimum height of 16-1/2″ above the main frame rail.
6. The door bars must be made from round steel DOM tubing 1-3/4″ by .090″ (.000 tolerance) minimum wall thickness on the left side, must have a minimum of three (3) bars (Design A) or minimum of four (4) bars (Design B) equally spaced from top to bottom that must be welded horizontally between the vertical uprights of the main roll bar (#1) and the front roll bar legs. The top left side door bar minimum height must be a minimum vertical height of 18-7/8 inches from the top of the main frame rails. The left side door bars
must be convex in shape and convex outward past the main frame rail. The left side door bars must have a minimum of six (6) vertical supports with two (2) equally spaced between each door bar. a minimum of 1-3/4″ by .090″ (.000 tolerance) minimum wall thickness magnetic steel seamless round tubing. All door bars must be plated from the top door bar to the frame rails.
Design A (3 door bars) – minimum 0.090″ solid steel doorplate’s must be welded or bolted to the roll cage using a minimum of six (6) each 3/8″ (.375-inch) aircraft quality bolts and washers.
Design B (4 door bars) – minimum 0.062″ (1/16″) steel doorplate’s must be welded or bolted to the roll cage using a minimum of six (6) each 3/8″ (.375-inch) aircraft quality bolts and washers.
7. Right side door bars must be made from round steel tubing with a minimum of, one top bar of 1-3/4″ by .090″ (.000 tolerance) with a minimum height of 15″, maximum of 20 ½” and one diagonal bar of 1-1/2″ x .065″.
8. The left side vertical vent window bar must be made from a minimum of round steel DOM tubing 1-1/2″ by .065″ (.000 tolerance) minimum wall thickness and must be welded from the upper surface of the top door bars on the left side to the front roll bar legs.
9. The two rear down support bars must be made from round steel DOMtubing 1-1/2″ by .065″(.000 tolerance) minimum wall thickness and must be lengths of tubing welded to the left and the right backside of the main roll bar near the roof panel at the top and connects with the sub frame.

D. Driver’s box and foot box:
The floor pan of driver’s box must be a minimum of 12-gauge(.100”) thickness steel plate and welded in.
2. The left side of the driver’s foot box must be plated with a minimum plate of 9” high by 12” long and a minimum .090” thickness steel plate and welded in place to protect the driver’s feet.
3. Behind the driver’s seat must be plated with a minimum .090” thickness steel plate, at minimum 10” tall by 12” wide and welded in place.

E. Fuel and Fuel Cell:
1. Fuel cell must be mounted in a minimum structure of 1”x 1” squaresteel tubing with a minimum thickness of .065” (.000 tolerance).
2. The fuel cell must be encased in a container of not less than 22 gauge (0.031” thick) magnetic sheet steel.
3. If the fuel cell container has a bolt on top, it must be bolted together with minimum 3/16” diameter bolts.
4. The bottom support frame must be constructed using a minimum of two (2) straps, 1 ½” x 0.125” minimum thick magnetic steel or 1”x 1” square steel tubing with a minimum thickness of .065” (.000 tolerance). These supports must be welded to the fuel cell front and rear cross members. The support straps must extend down the front and rear equally spaced and under the fuel cell container.
5. A reinforcement plate of not less than 11-gauge aluminum (.125” thick) flat plate must be installed in front will be mandatory and behind the fuel cell container is highly recommended. The plates must extend the entire height and width of the full cell container and be securely welded in place or bolted (minimum 3/16’ diameter bolts) with two (2) bolts on each side.

F. Bumpers:
1. Nose/front bumper, tail/rear bumper cover must be a minimum 1.250” x .065” OD steel tubing. All supporting substructures must be constructed of a minimum ¾” x .065” wall round or square steel stock. If aluminum tubing is being utilized, minimum wall thickness must be .083”.

G. Chassis Right Side Body Bars:

1. Chassis right side door bars commonly called the outrigger or the kick-up bar supporting structures must be a minimum 1.250” x .065” OD steel tubing only. All supporting substructures must be constructed of a minimum ¾” x .065” wall round or square steel stock.
